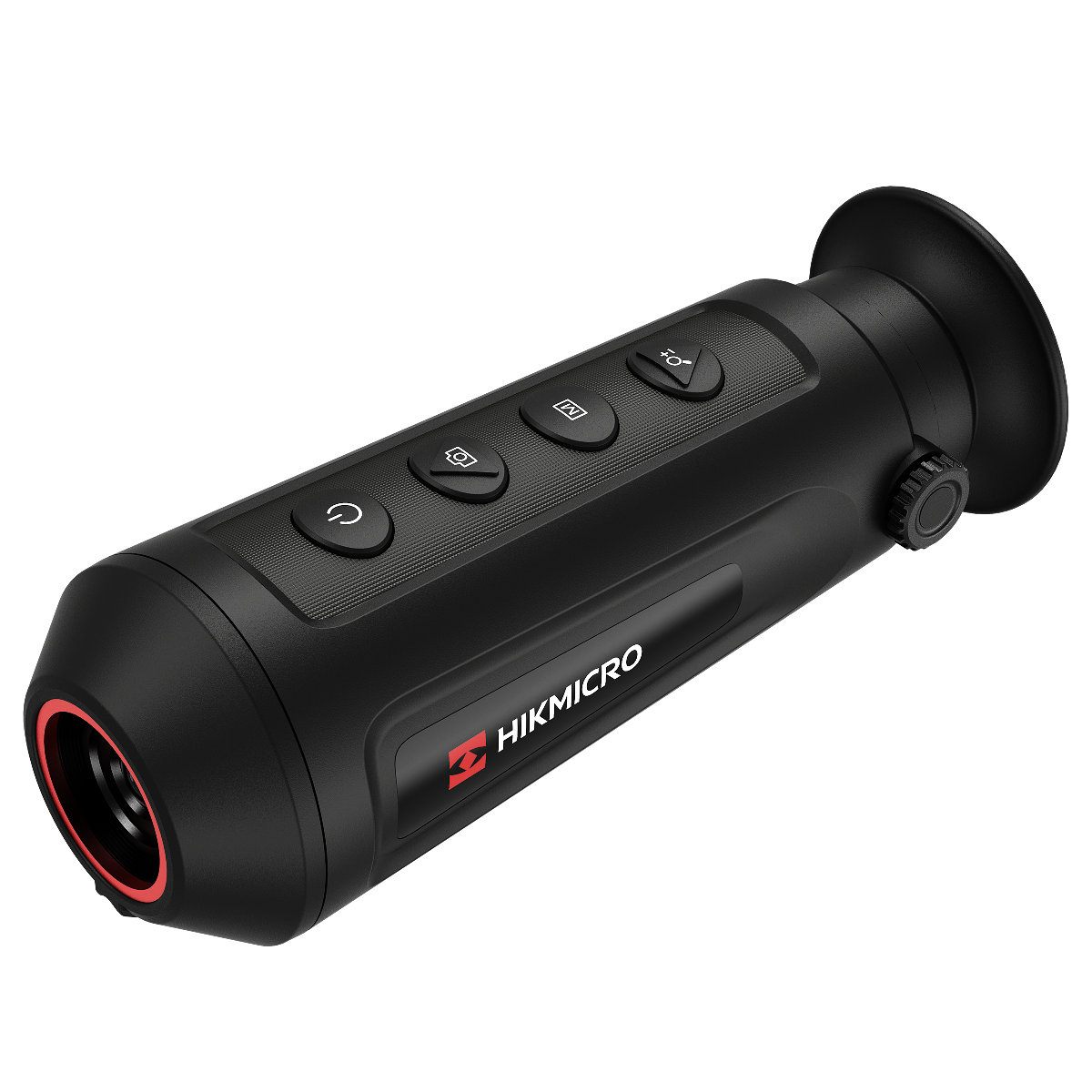

HIK Micro Lynx 10mm 35mK 256×192 12um Smart Thermal Monocular
Out of stock
£549.95
Out of stock
The HIK Micro Lynx 10mm delivers a high-quality thermal image and packs a host of features normally reserved for high-end thermal spotters.
The high resolution 256 x 192, 12µm thermal sensor (35mK NETD Rating) and HIK software delivers a detailed image to the screen. The WiFi and dedicated app allows you to take complete control of the unit’s settings and features from your smartphone.
35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
IP67 rating guarantees a robust chassis capable of repelling dust and rain, protecting you from the worst of the weather.
This is all backed up by a 3 year UK warranty. (3 years – main unit / 2 years – Battery)
FEATURES:
At the heart of the Lynx 10 is the HIK Micro 256×192px, 12µm thermal sensor this delivers higher levels of image detail that will be especially useful when trying to locate and identify small animals like rabbits, squirrels and birds. This is the first time a high-resolution sensor of this quality has been offered on an entry level thermal spotter.
35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
Combine this with the HIK software that processes the image you see on screen and you have an unbeatable package that performs well above its price point.
T-VISION APP: Connect – Control – Stream
Connect your smartphone and take control of all features of the Lynx 15.
The T-Vision app allows you to stream the output in real time allowing you to share your viewpoint with a friend.
You can also record images and video, optimise the colour profile, display settings and magnification all from the easy to use app.
HOT TRACK
Activate Hot Tracking and your Lynx 15 will highlight the hottest spot detected in the current frame with a green crosshair.
This is useful to highlight small heat sources as you scan around.
This feature can also be deactivated in the menu or controlled in the App.
TECH SPECS:
MAIN
- Sensor: 256×192px @ 12µm
- Objective Lens: 10 mm
- Detection Range: (Vehicle 1.4 x 4m) 1353 m
- Detection Range: (Human 1.8 x 0.5m) 441 m
SENSOR
- Type: Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution: pixels 256 × 192 px
- Pixel pitch: µm 12µm
- Frame rate: Hz 25 Hz
- NETD Rating: <35mK
OPTICS
- Objective lens: F1.0
- Magnification: (Optical) 1x
- Magnification: (Digital) 1x, 2x, 4x, 8x
- Field of view: 18° × 13.55° (H × V)
DISPLAY
- Type: 5.08mm, LCOS
- Resolution: Pixels 720 × 540
- Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
VIDEO & SOUND
- Video Recorder: YES
- Sound Recorder: NO
- Build in memory: 8 Gb
ADDITIONAL FEATURES
- Hot Tracking: YES
- WiFI hot spot: YES
- T-Vision App support: YES
ENVIRONMENTAL
- Degree of protection: IP code IP67
- Dust protection: Protected against dust ingress
- Water protection: Protected against temporary submersion in water
- Operating temperature range: -20 °C to 55 °C
WEIGHT & SIZE
- Dimensions: 158 mm × 61 mm × 57 mm
- Weight: 0.26 kg
POWER SUPPLY
- Operating time on battery (WiFi & Hot tracking disabled): 8 hours continuous running
- Charging interface: USB-C
- Battery capacity after 1000 cycles: 80%
