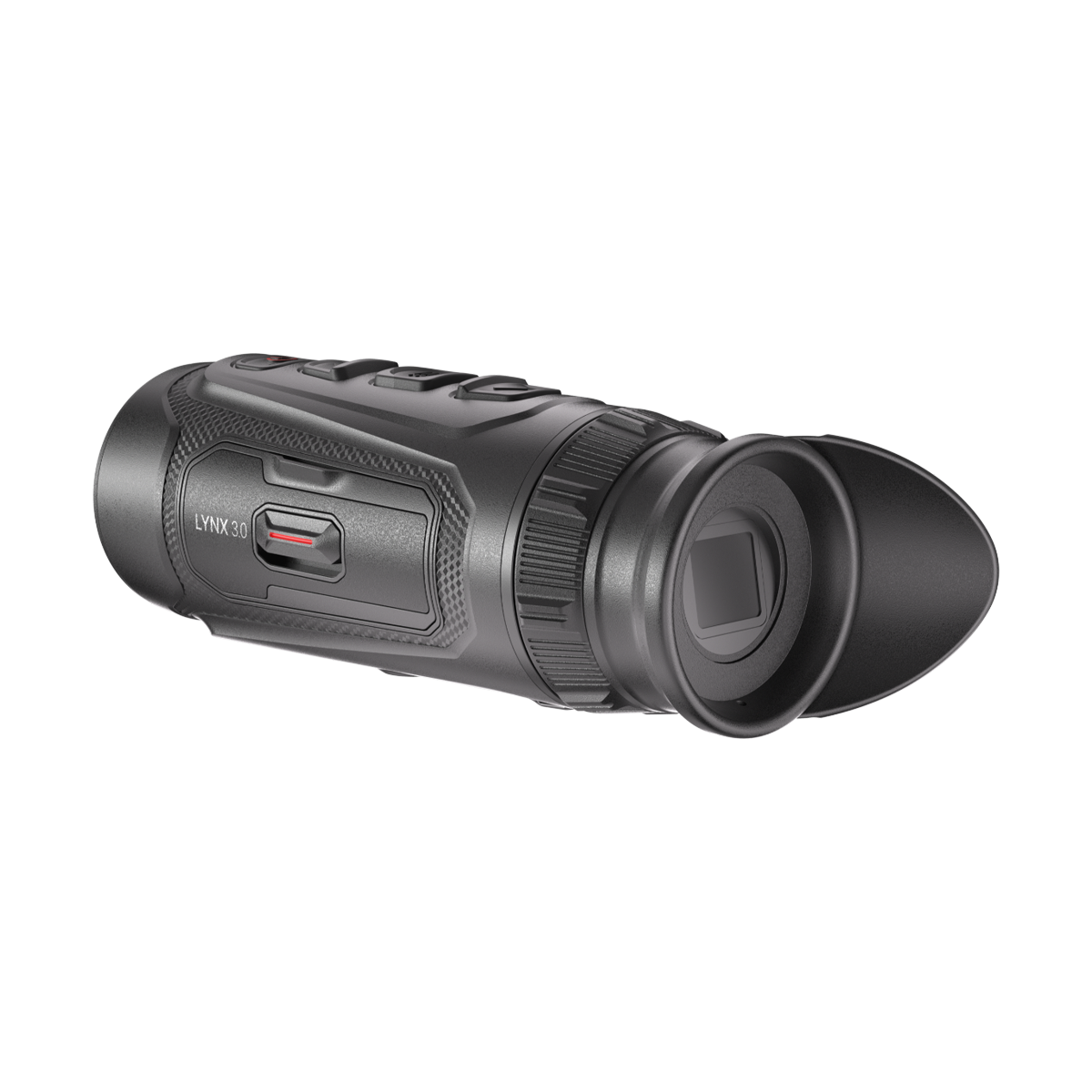

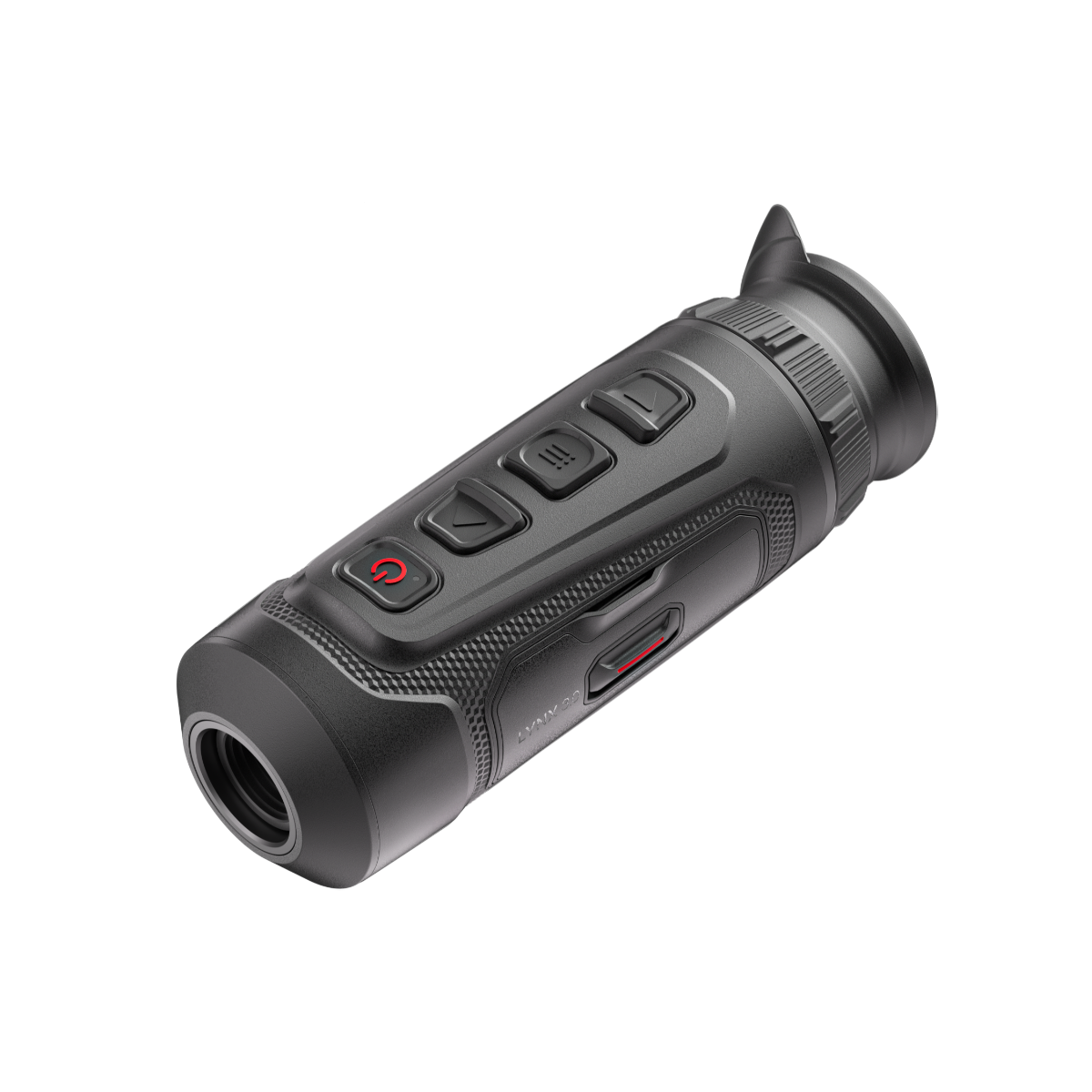

The Lynx 3.0 , redefining entry-level thermal imagers.
The HIKMICRO Lynx 3.0 LE10 is designed for professionals seeking compact, high-value thermal imaging for close-range observation. Equipped with a 256×192 thermal detector and a 9.7mm F1.0 lens, it provides a 1.4x base magnification and an 18° field of view, delivering clear, detailed imaging across a detection range of up to 500 metres.
Powered by AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LE10 ensures exceptional image sharpness and stability, even in challenging environments. The HIKMICRO Shutterless Image System (HSIS) guarantees silent, seamless image processing, enabling uninterrupted operation during critical tasks such as wildlife observation, surveillance, or search and rescue.
Built for efficiency and endurance, the LE10 features a replaceable 18650 battery delivering up to 5.5 hours of runtime at -20°C. Compact and lightweight at just 291.5 grams, it’s pocket-sized yet robust enough for demanding field use. This is the ideal thermal monocular for users who require reliability, precision, and value in one professional package.
- Max. Resolution: 256 × 192
- Frame Rate: 50 Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 20 mK (@25°C), F#=1.0
- Lens (Focal Length): 9.7 mm, F1.0
- Focus Mode: Focus Free
- Min. Focusing Distance: 3.4 m
- Magnification: 1.4 × – 11.2 × (8×)
- Field of View (H × V), Degrees / m @100 m: 18° × 13.6° / 31.7 m × 23.8 m
- Detection Range: 500 m
- Display: 1024 × 768, 0.39 inch, AMOLED
- Contrast Adjustment: Yes
- Brightness Adjustment: Yes
- Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil: 6 mm
- Eye Relief: 20 mm
- Diopter (Range): -5 D to +3 D
- Tone Adjustment: Cold, Warm
- Zoom Pro: Yes
- HSIS (HIKMICRO Shutterless Image System): Yes
- Image Pro 3.0: Yes
- Sync Pro: Yes
- Battery Type: Replaceable and rechargeable 18650 battery
- Protection Level: IP67
- Weight: 331 g with Battery
- AI-powered Image Pro 3.0 and Zoom Pro algorithms
- HIKMICRO Shutterless Image System (HSIS)
- Up to 5.5 hours’ operation at -20°C
- Lightweight, pocket-sized 291.5g design
- 3 year warranty
In the box:
- 1x Lynx 3.0 Thermal Monocular
- 1x Quick Start Guide
- 2x 18650 Battery
- 1x Type-C USB Cable
- 1x Battery Charger
- 1x Lint Free Cloth
