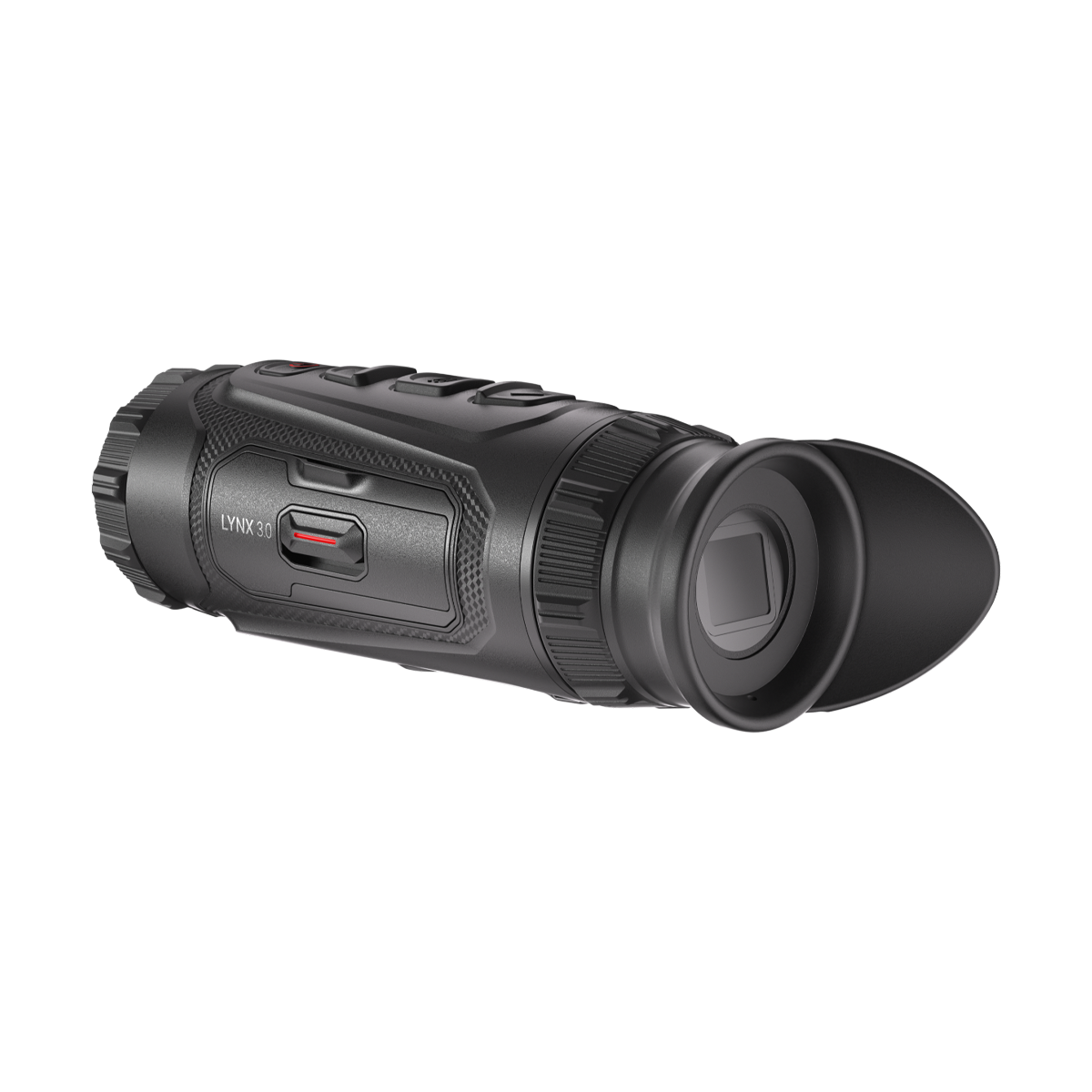

The Lynx 3.0, redefining entry-level thermal imagers.
The HIKMICRO Lynx 3.0 LH19 sets a new benchmark in portable thermal optics. Equipped with a 384×288 thermal detector and a 19mm F1.0 lens, it delivers 1.9x base magnification, a 13.8° field of view, and a 900-metre detection range, providing sharp detail and versatile coverage for professionals in the field.
Enhanced with AI-powered Image Pro 3.0 and Zoom Pro algorithms, the LH19 ensures superior contrast and detail recognition. Its HIKMICRO Shutterless Image System (HSIS) guarantees smooth, noise-free imaging , ideal for discreet and continuous observation.
Built with durability in mind, the LH19 weighs 331 grams and is powered by a replaceable 18650 battery, offering 4.5 hours’ runtime at -20°C. Compact, ergonomic, and performance-driven, it’s a premium choice for professionals demanding exceptional image quality in a lightweight body.
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Max. Resolution:384 × 288
- Frame Rate: 50 Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 15 mK (@25°C), F#=1.0
- Lens (Focal Length): 19 mm, F1.0
- Focus Mode: Focus Wheel
- Min. Focusing Distance: 3 m
- Magnification: 1.9 × – 15.2 × (8×)
- Field of View (H × V), Degrees / m @100 m: 13.8° × 8.4° / 24.2 m × 14.7 m
- Detection Range: 900 m
- Display: 1920 × 1080, 0.49 inch, AMOLED
- Contrast Adjustment: Yes
- Brightness Adjustment: Yes
- Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil: 6 mm
- Eye Relief: 20 mm
- Diopter (Range): -5 D to +3 D
- Tone Adjustment: Cold, Warm
- Zoom Pro: Yes
- HSIS (HIKMICRO Shutterless Image System): Yes
- Image Pro 3.0: Yes
- Sync Pro: Yes
- Battery Type: Replaceable and rechargeable 18650 battery
- Protection Level: IP67
- Weight: 331 g with Battery
- AI-powered Image Pro 3.0 and Zoom Pro algorithms
- HIKMICRO Shutterless Image System (HSIS)
- 0.49” 1920×1080 AMOLED display
- Up to 4.5 hours’ operation at -20°C
- Lightweight, pocket-sized 331g design
- 3 year warranty
In the box:
- 1x Lynx 3.0 Thermal Monocular
- 1x Quick Start Guide
- 2x 18650 Battery
- 1x Type-C USB Cable
- 1x Battery Charger
- 1x Lint Free Cloth
